The mobile version of FiberChekPRO from VIAVI Solutions.
FiberChekMOBILE™ is the mobile version of the popular VIAVI FiberChekPRO™ software program to inspect, test, and certify fiber connectors in an optical network. FiberChekMOBILE works in conjunction with VIAVI test products such as the FiberChek™ Sidewinder™, FiberChek Probe, and P5000i digital analysis probe microscopes. Once connected, users can view live images of the fiber connector end face, focus the image, perform automated Pass/Fail analyses, generate certification reports, and send results instantly via cellular data to Dropbox™, Google Drive™, or email.
Key Features:
- Accepts a VIAVI FiberChek Sidewinder and FiberChek Probe
- Accepts a VIAVI FBPP-WIFI Adapter to wirelessly connect the P5000i and MP-Series USB Optical Power Meter
- Accepts a VIAVI P5000i Digital Analysis Probe (NOTE: The P5000i MUST be enabled for mobile operation; this can be ordered from VIAVI Solutions - order number SW-FCM-A1)
- Accepts a VIAVI MP-Series USB Optical Power Meter (NOTE: Requires a USB OTG converter cable)

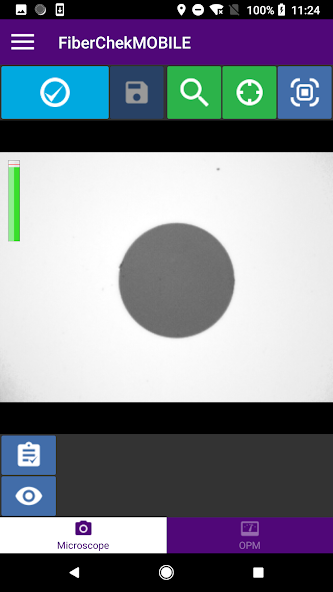

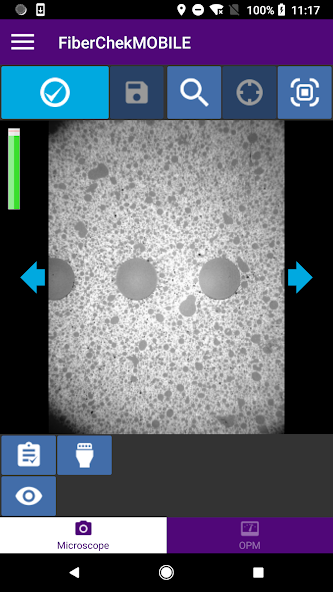

- View live images of the fiber end face
- Focus the image with the touch of a button (FiberChek and FiberChek Sidewinder microscopes)

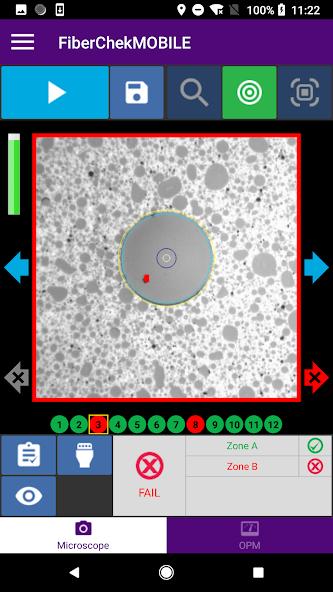

- Automated Pass/Fail analysis of fiber end faces to eliminate subjective guesswork from the measurement process
- User-selectable acceptance profiles allow certification to any acceptance criteria, including IEC 61300-3-35
- Save images and analysis results onto your mobile device
- Generate and view certification reports of test results to document your work
- Share results and reports to Dropbox, Google Drive, and email via cellular data while working or via WiFi after your work is finished
